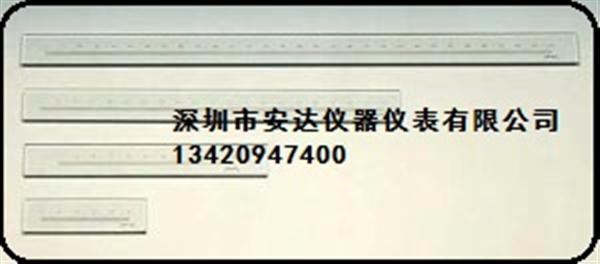

Peak #1972 Glass Scale with Magnifier
of the user. The glass plate has a function to resist changes because of temperature changes.
The 50, 100, 200, 300 are supplied with a 15x, #1962 loupe.
The 300S, 500S, 700S, 1000S are supplied with 2 10x, #1983 loupes with out scales.
S-type series have two cursors, on both of which Peak scale loupe 10x (w/out scale) is set. The confirmation of 0-position and measuring between two points are possible.
1972-50
Scale length 50mm, Min. Scale Divisions 0.1 mm, Size 3mm x 25mm x 70mm.
1972-100
Scale length 100mm, Min. Scale Divisions 0.1 mm, Size 3mm x 25mm x 140mm.
1972-200
Scale length 200mm, Min. Scale Divisions 0.1 mm, Size 3mm x 25mm x 220mm.
1972-300
Scale length 300mm, Min. Scale Divisions 0.1 mm, Size 3mm x 25mm x 330mm.
1972-300S
Scale length 360mm, Min. Scale Divisions 0.1 mm, Size 10mm x 50mm x 360mm.
1972-500S
Scale length 500mm, Min. Scale Divisions 0.1 mm, Size 10mm x 50mm x 560mm.
1972-700S
Scale length 700mm, Min. Scale Divisions 0.1 mm, Size 10mm x 50mm x 760mm.
1972-1000S
Scale length 1000mm, Min. Scale Divisions 0.1 mm, Size 10mm x 50mm x 1,060mm.
|
Item Number
|
Length of Scale
|
Min. Scale Division
|
Lupe
|
Size (mm)
|
|
1972-50
|
50 mm
|
0.1 mm
|
15 x 1 pcs.
|
3tx25x70
|
|
1972-100
|
100 mm
|
0.1 mm
|
15 x 1 pcs.
|
3tx25x140
|
|
1972-200
|
200 mm
|
0.1 mm
|
15 x 1 pcs.
|
3tx25x220
|
|
1972-300
|
300 mm
|
0.1 mm
|
15 x 1 pcs.
|
3tx25x220
|
|
1972-300S
|
300 mm
|
0.1 mm
|
10 x 2 pcs.
|
10tx50x360
|
|
1972-500S
|
500 mm
|
0.1 mm
|
10 x 2 pcs.
|
10tx50x560
|
|
1972-700S
|
700 mm
|
0.1 mm
|
10 x 2 pcs.
|
10tx50x760
|
|
1972-1000S
|
1000 mm
|
0.1 mm
|
10 x 2 pcs.
|
10tx50x1060
|
The Peak Glass Scale consists of a transparent glass plate, which has graduations marked by means of photo-printing. This scale provides accurate readings since it does not screen an object to be measured from the eyes
